60x30x12ft YB / SS
£22,650.00 Price incl. VAT: £27,180.00

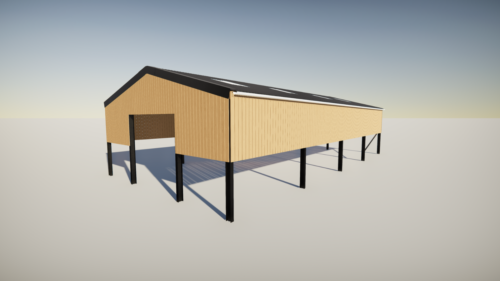

60 x 30 x 12ft Agricultural Livestock Building
Steel Roof Sheets with Anti Condensation Lining
Yorkshire Boarding to 1.6m from Finished Floor level
Timber Roof Purlins
Timber Cladding Rails
Galvanised Steelwork
Kit Includes
60ft (18.2m) x 30ft (9.1m) x 12ft (3.66m) Eaves
15ft (4.57m) Bays/ 15 Degree Pitch
10no Columns 203*133*25kg/m
10no Rafters 203*133*25kg/m
2no Gable Legs 203*133*25kg/m
8no Eaves Braces 60*60*3mm SHS
4no Diagonal Column Braces 80*80*3mm SHS
2no Diagonal Roof Wind Braces 60*60*3mm SHS
7×3 C16/24 Treated Timber Purlins
9×3 C16/24 Treated Timber Eaves Beams
7×3 C16/24 Treated Timber Cladding Rails
3×2 Timber Rafter Gable Finish Rails
Purlin + Cladding Rail Bolts
Portal Frame Steelwork Bolts
Foundation Bolts M20x300 Included for 10no Main Portal Columns
Van Dyke Brown 0.7mm 1000/32 Roof Sheets with Anti Condensation Lining
Yorkshire Boarding (150mm x 22mm) Spaced at 22mm on Both Gables and Rear from Roof Level to 1600mm Above FFL
150mm Box Steel Galvanised Gutter to Both Eaves inc 2no 110mm Downpipe to FFL
CE Marked
– UK Mainland Delivery – Please specify for Highlands and Islands
– Manufactured to the Highest possible Quality in the UK – CE Marked
– Current lead time 10-12 weeks from Date of Approvals
